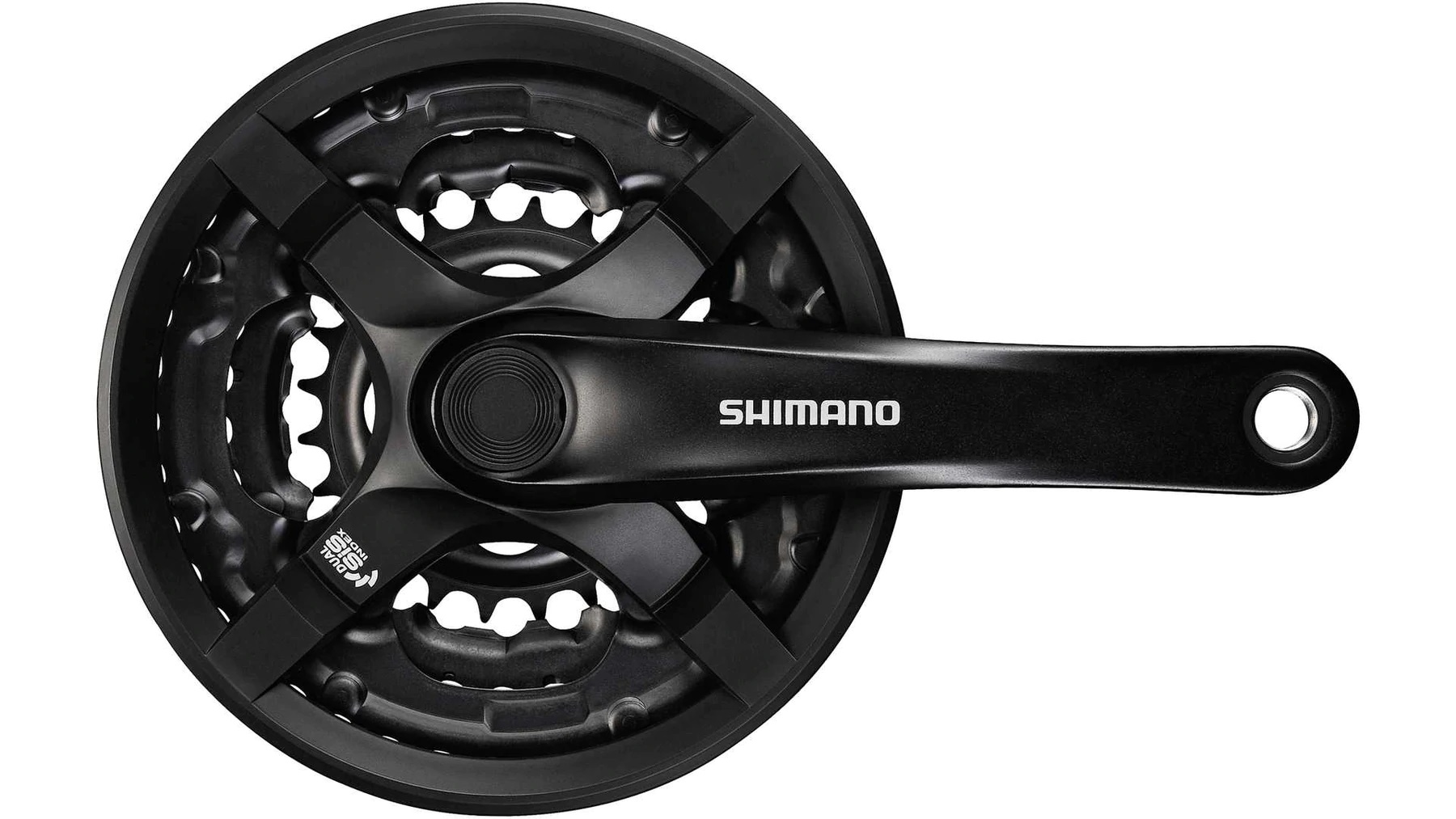

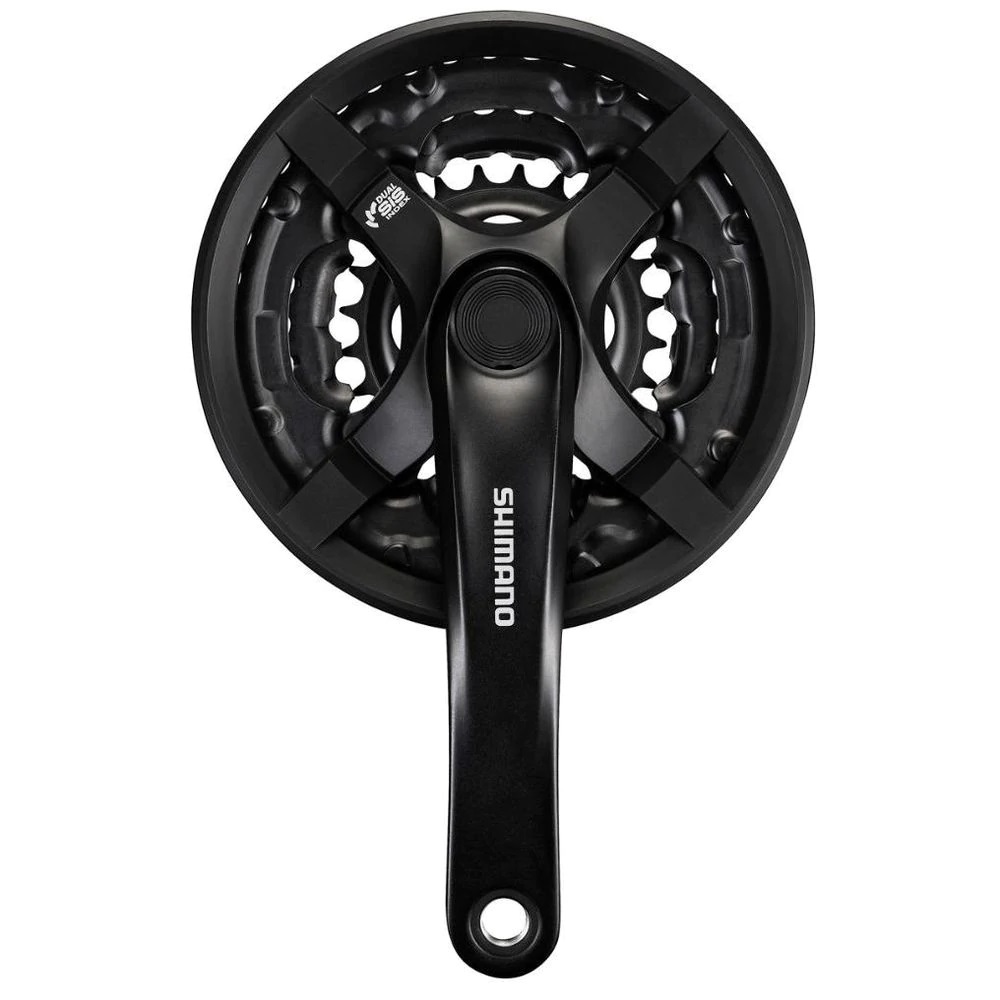

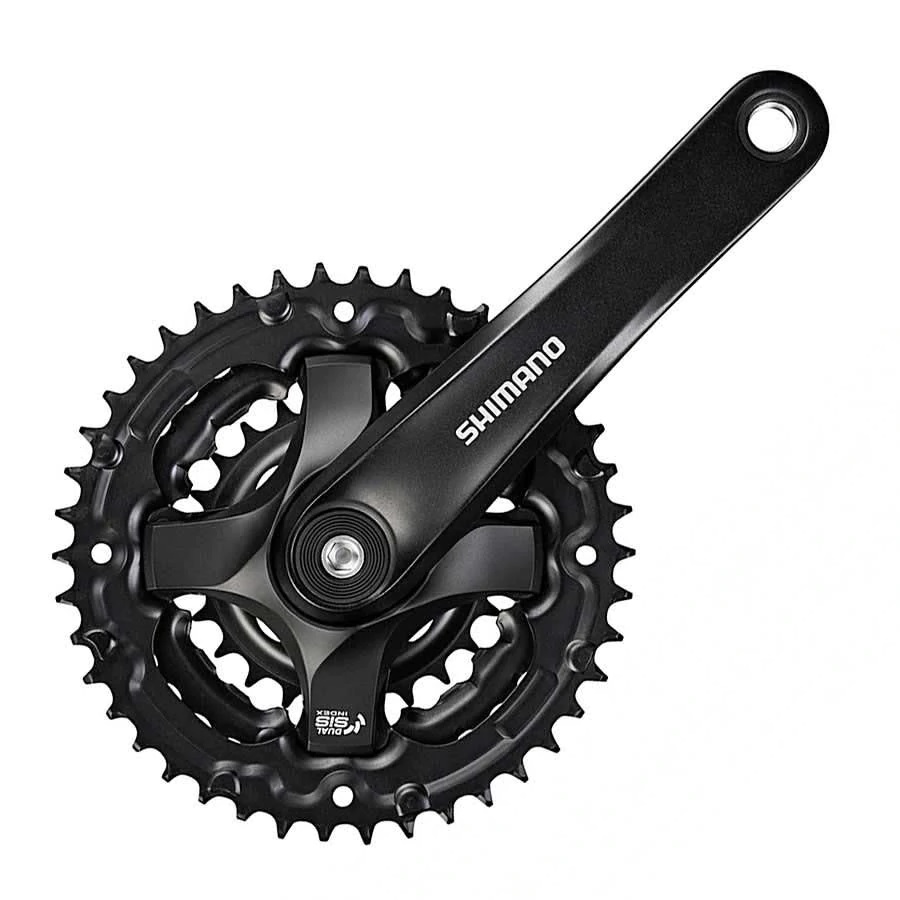

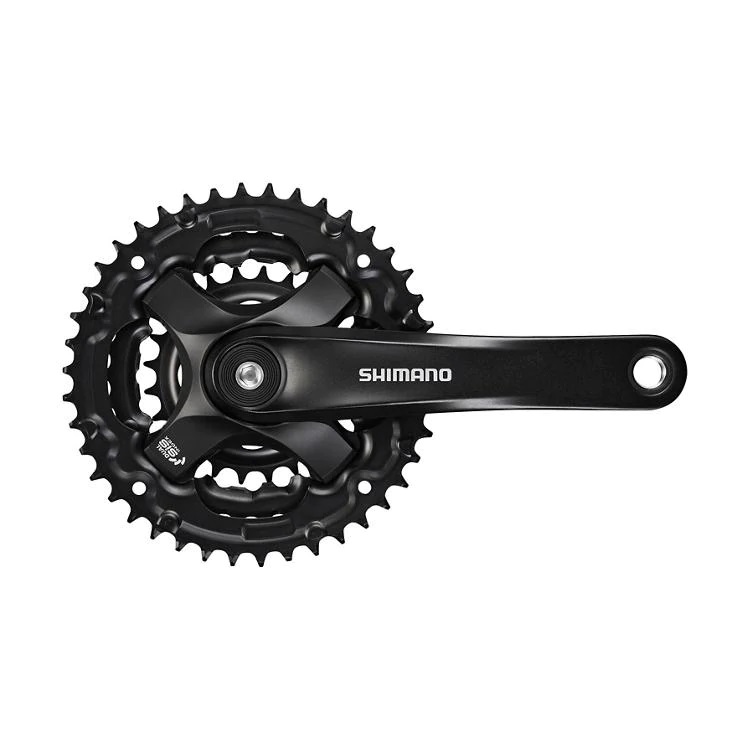

Shimano FC-TY501 Tourney Crankset – 3×6/7/8 Speed

1,580.00

FC-TY501

SHIMANO TOURNEY TY – MTB Crankset – 185.5 mm Q-Factor – 3×8/7/6-speed

Compatible with a 3×8, 3×7, and 3×6 speed drivetrains, the SHIMANO TOURNEY TY crank delivers reliable, precise DUAL SIS shifting.

  • Light and reliable shifting
  • Precision indexed shifting
  • DUAL SIS
  • Versatile performance
  • Wide compatibility with multiple components
  • 8/7/6-speed compatible
  • 3 crank length specification available
  • Quick and precise assembly
  • Precise chain line control

Out of stock

Compare

Description



PRODUCT SPECIFICATIONS

MODEL NO FC-TY501
SERIES TOURNEY
Color Black
Remarks * Bottom bracket spec. for chain line 50 mm
Axle length of BB-UN/ES (mm)_Threaded (chain case) D-NL K
Axle length of BB-UN/ES (mm)_Threaded (normal) D-NL, *D-EL
Chain case compatible ✔
Chain line (mm) 47.5/47.5 + t/50
Chainring combination 48-38-28T | 42-34-24T
Compatible bottom bracket type_Square ✔
Compatible chain HG/UG for 8/7/6-speed
Crank fixing bolt included X (Option)
Crank arm length (mm)_165 ✔
Crank arm length (mm)_170 ✔
Crank arm length (mm)_175 ✔
Spider/Gear arms 4
Optional chain guard_With chain guard X (integrated type)
Optional chain guard_Without chain/bash guard ✔
P.C.D. (mm) Riveted
Rear speeds 8/7/6
Recommended bottom bracket_Threaded (chain case) BB-UN101-K, BB-UN300K
Recommended bottom bracket_Threaded (normal) BB-UN101, BB-UN300
Threaded bottom bracket shell width (mm)_68 ✔
Threaded bottom bracket shell width (mm)_73 ✔
Crank arm fixing bolt_With ✔
Q-factor (mm) 185.5

Additional information

TEETH RATIO

42-34-24T / 170MM (With Chain Guard), 42-34-24T / 170MM (Without Chain Guard), 42-34-24T / 175MM (With Chain Guard), 42-34-24T / 175MM (With Chain Guard) (Silver), 48-38-28T / 170MM (With Chain Guard)
