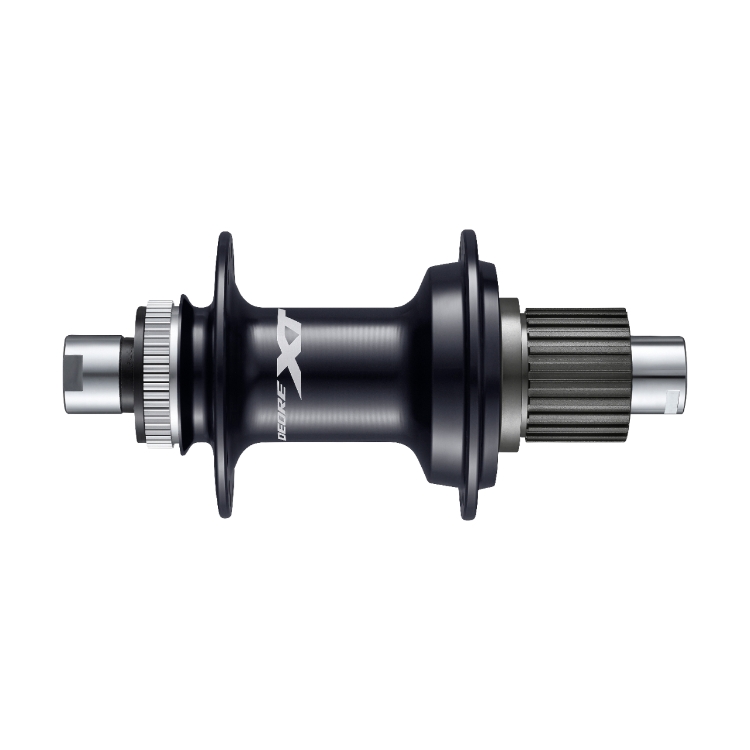

SHIMANO DEORE XT Rear FREEHUB 148×12 mm E-THRU Axle 12-speed FH-M8110-B

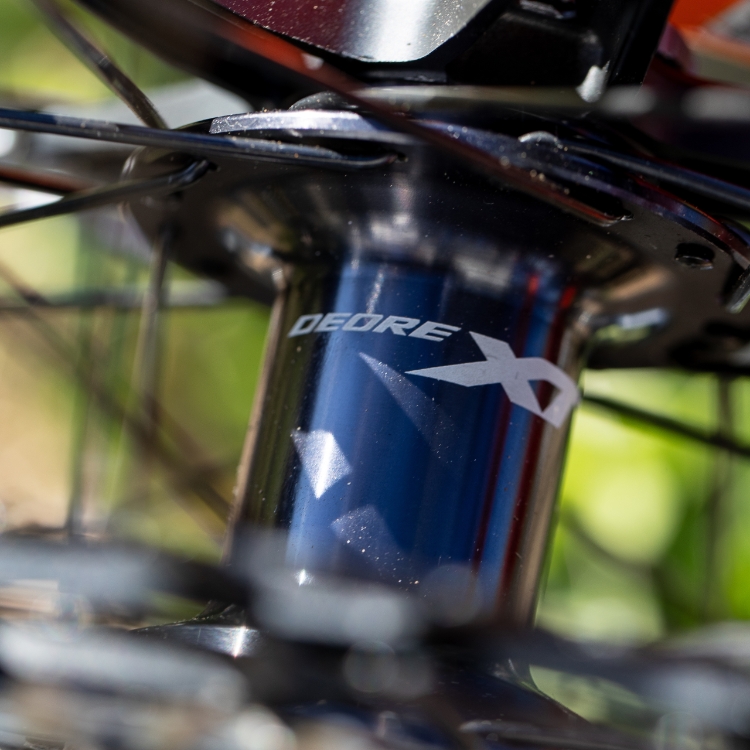

SHIMANO DEORE XT Rear FREEHUB 148×12 mm E-THRU Axle 12-speed FH-M8110-B - Image 2

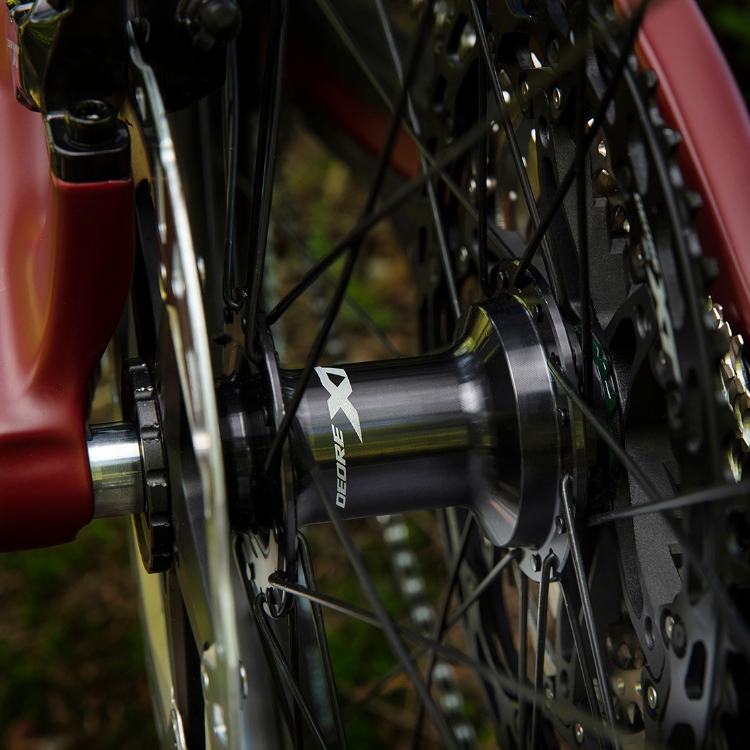

SHIMANO DEORE XT Rear FREEHUB 148×12 mm E-THRU Axle 12-speed FH-M8110-B - Image 3

SHIMANO DEORE XT Rear FREEHUB 148×12 mm E-THRU Axle 12-speed FH-M8110-B

SKU: N/A
In Stock
₹8,910.00
In Stock

SHIMANO DEORE XT – Rear FREEHUB – MICRO SPLINE – CENTER LOCK – Disc Brake – 148×12 mm E-THRU Axle – 12-speed

Compatible with 12-speed MICRO SPLINE cassettes.

FEATURES

  • Faster acceleration amplifies riding excitement
  • Smaller spline diameter for 10T top gear by MICRO SPLINE
  • Simple setup and reliable trail performance
  • Easy disc brake rotor installation with spline mount and lock ring
  • CENTER LOCK
  • O.L.D.: 148 mm
Add to wishlist
Compare
Free Shipping & Returns on this item
Delivery within 3-5 working days
Money Back Guarantee

Reviews

There are no reviews yet.

Be the first to review “SHIMANO DEORE XT Rear FREEHUB 148×12 mm E-THRU Axle 12-speed FH-M8110-B”

Your email address will not be published. Required fields are marked *

Description

PRODUCT SPECIFICATIONS

MODEL NO FH-M8110-B
SERIES DEORE XT M8100 Series
Color Series color
Average weight 307
Color|1 Hub shell Series color
Brake type CENTER LOCK disc brake
Rear speeds 12
O.L.D. (mm) 148
Spoke hole|28H ✔
Spoke hole|32H ✔
Spoke hole|36H ✔
10 tooth cog compatible ✔
External serration disc brake rotor lock ring|Without ✔
Internal serration disc brake rotor lock ring|Without ✔
Axle fixing method 12 mm E-THRU
Thru axle (length x inner diameter ; mm)|148 x 12 ✔
Flange distance (mm) 62.16
Offset (mm) 6.6
P.C.D. left / right (mm) 60/61
Flange diameter left / right (mm) 68.8/69.8
Spline type|MICRO SPLINE ✔
Engagement type Direct engagement
Quick engagement X (max 7.0 deg.)
Seal|Hub Labyrinth+Contact
Seal|FREEHUB body Contact
